Slip rings · Turntables · Liquid cooling
Sharply engineered.
Precisely built.
Slip rings, precision turntables and liquid-cooling hardware for marine, radar, wind energy, aerospace and defense — catalog series or built to your drawing, engineered in Glastonbury, Connecticut.
10 kV
Power slip rings · L-HH-01-002
5,000 A
Max rated current
35 MPa
Fluid rotary unions · 2–20+ passages
200 W/cm²
Cold plate heat flux · C-HH-01
Engineered for
Marine & Offshore
Radar & Antenna
Ports & Cranes
Wind Energy
Subsea
Aerospace & Defense
Product lines
Power, signal, fluid and heat — moved across rotating and sealed interfaces.
Four product lines, one engineering team. Start from a catalog series or send a drawing — we review every requirement before quoting.
01 · Series L-HH
Slip Rings
Standard and custom rotary interfaces for signal, power, data, fluid and fiber — individually or combined in one hybrid assembly.
- Signal
- Power
- Communication
- Fluid
- Fiber-optic
- Hybrid
02 · Series C-HH
Liquid Cooling
Vacuum-brazed and friction-stir-welded thermal hardware rated −55 °C to +90 °C, from single cold plates to complete liquid-cooled chassis.
- Cold plates
- Enclosures
- Vapor chambers
- Heat exchangers
- Fluid connectors
- Pipelines

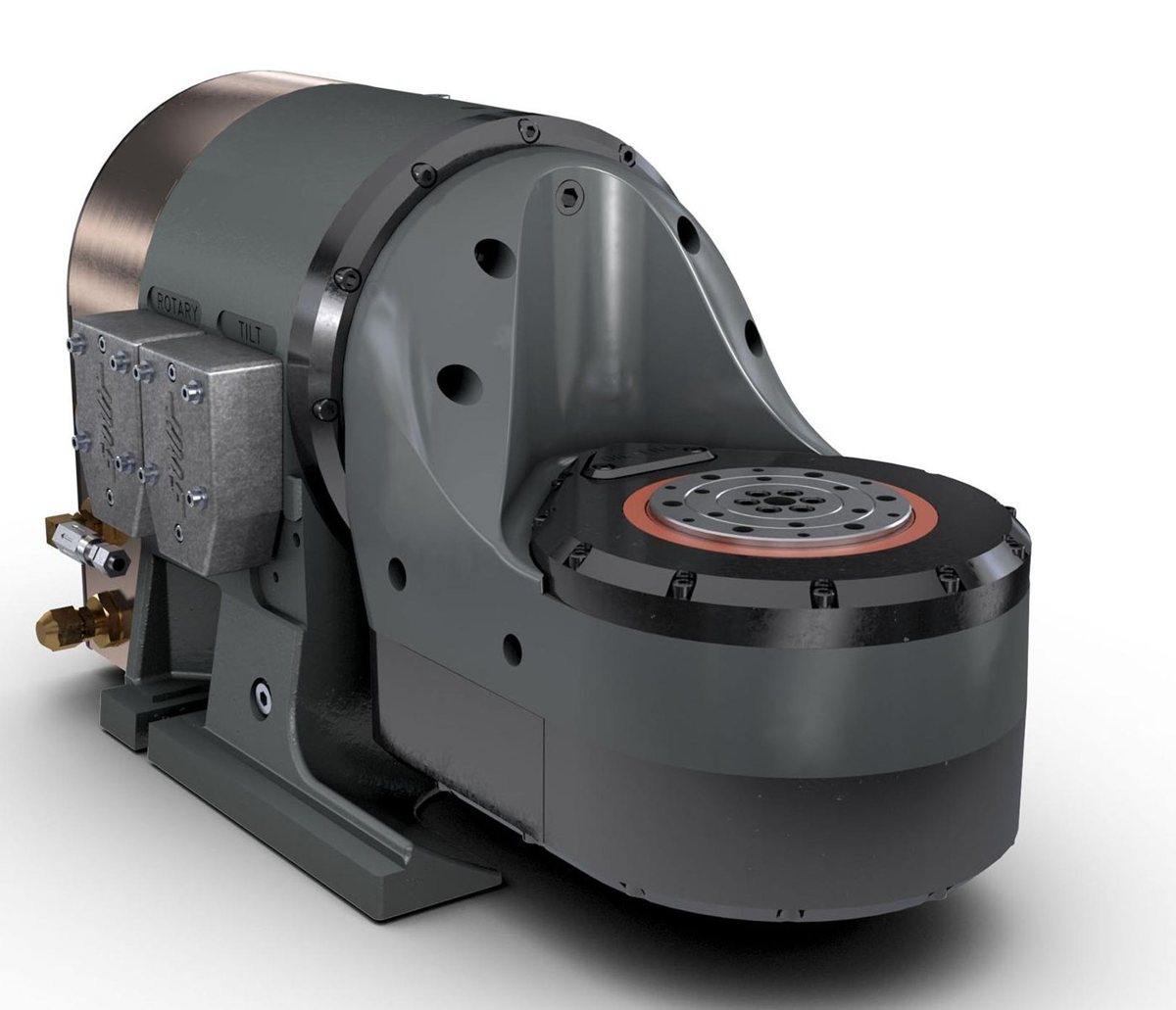

03 · Positioning
Turntables
One-, two- and three-axis turntables for antenna test, vehicle-mounted tracking and shipborne stabilization.
- 2 t payload
- 1′ accuracy
- ±25° roll stabilized
04 · Build to print
Custom Manufacturing
CNC machining, sheet metal, finishing, additive and assembly — from first prototype to production lots.
Slip ring series
Find your series by what has to cross the joint.
| Model | Transfers | Rating | Limit | Options |
|---|---|---|---|---|
| L-HH-01-001 | Signal | 0–690 V · ≤ 200 A | IP51 – IP67 | Gold, silver or carbon contacts |

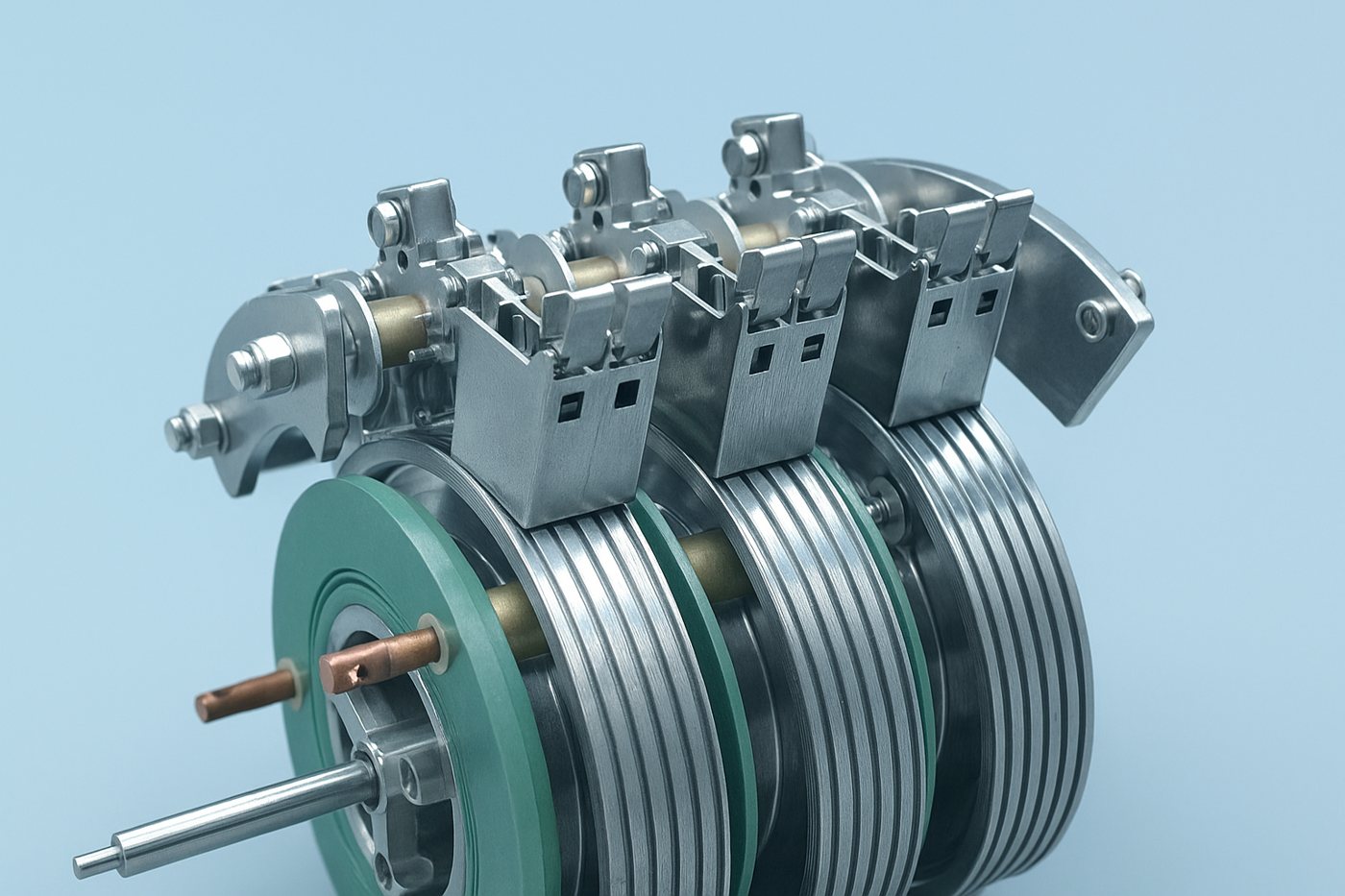

| L-HH-01-002 | Power | 0–10 kV · ≤ 5,000 A | ≤ 6,000 rpm | C3 – H insulation class |
| L-HH-01-003 | Communication | ≤ 5 A | Up to 1000BASE-T | RS-232/422/485, CANbus, Profibus |
| L-HH-02-001 | Fluid | 0–35 MPa | 2 – 20+ passages | Water, coolant, oil, air, gas |
| L-HH-03-001 | Fiber-optic | 850–1550 nm | 1 to ≥ 5 channels | FC / SC · IL ≤ 2–4 dB |
Flagship build

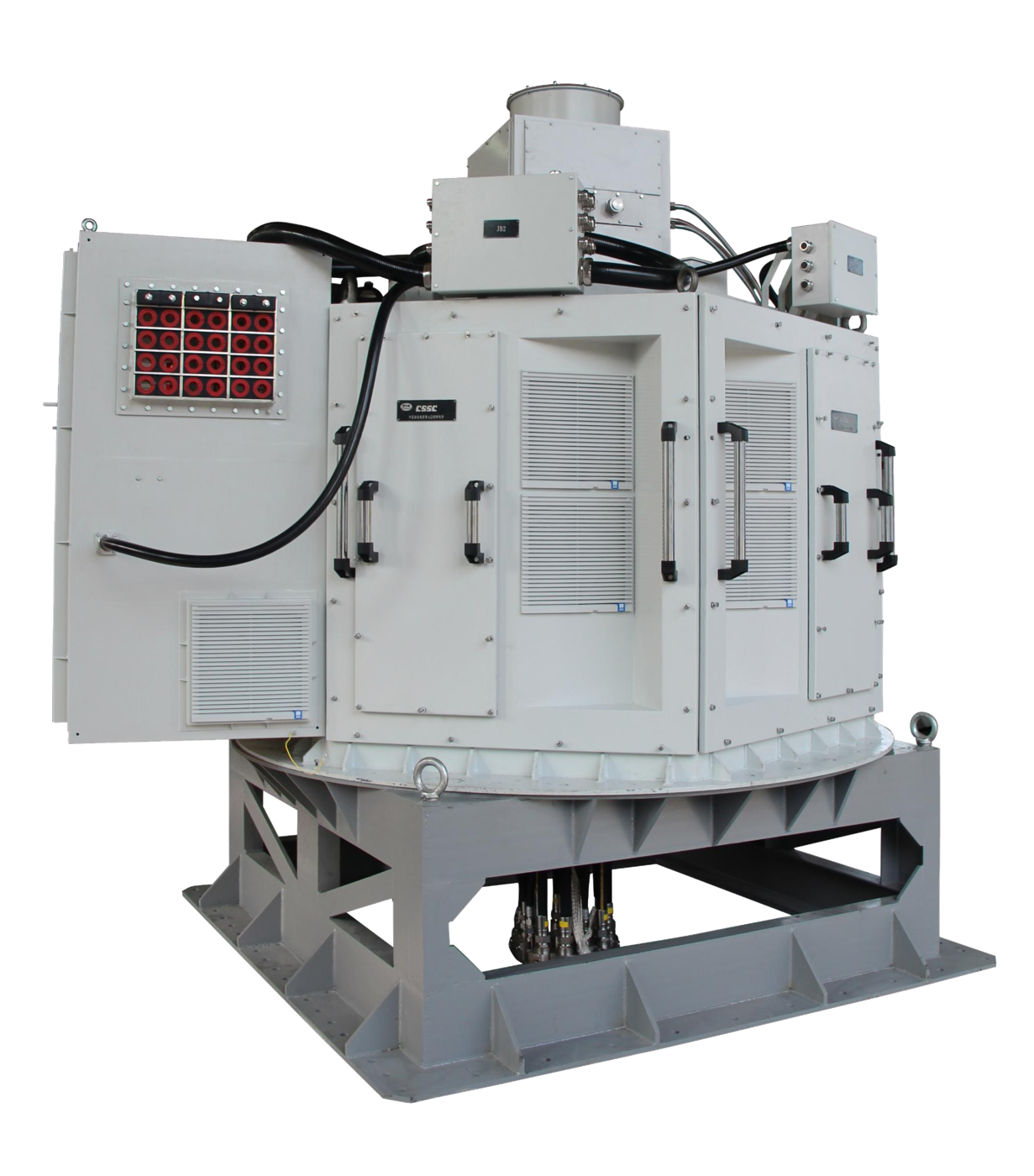

Marine podded-propulsion slip ring: 2,600 A at 3,300 V.
Power, fluid and signal in one rotating assembly for a ship’s podded electric drive — with online ring-temperature monitoring and automatic heater dehumidification for life at sea.
| Power circuits | 4 × AC 3,300 V / 2,600 A |
| Short-circuit withstand | 31.5 kA (3 s) · 80 kA peak |
| Fluid passages | 12 · oil, air, seawater · ≤ 25 MPa |
| Signal circuits | 190 × DC 24 V |
| Contact resistance | ≤ 0.1 mΩ · rise ≤ 45 K |
| Power-frequency withstand | ≥ 30 kV · 60 kV impulse |
Industries
Built for equipment that never stops turning.
From ship propulsion pods to radar pedestals and port cranes — rotating power, data and fluid where downtime is expensive.

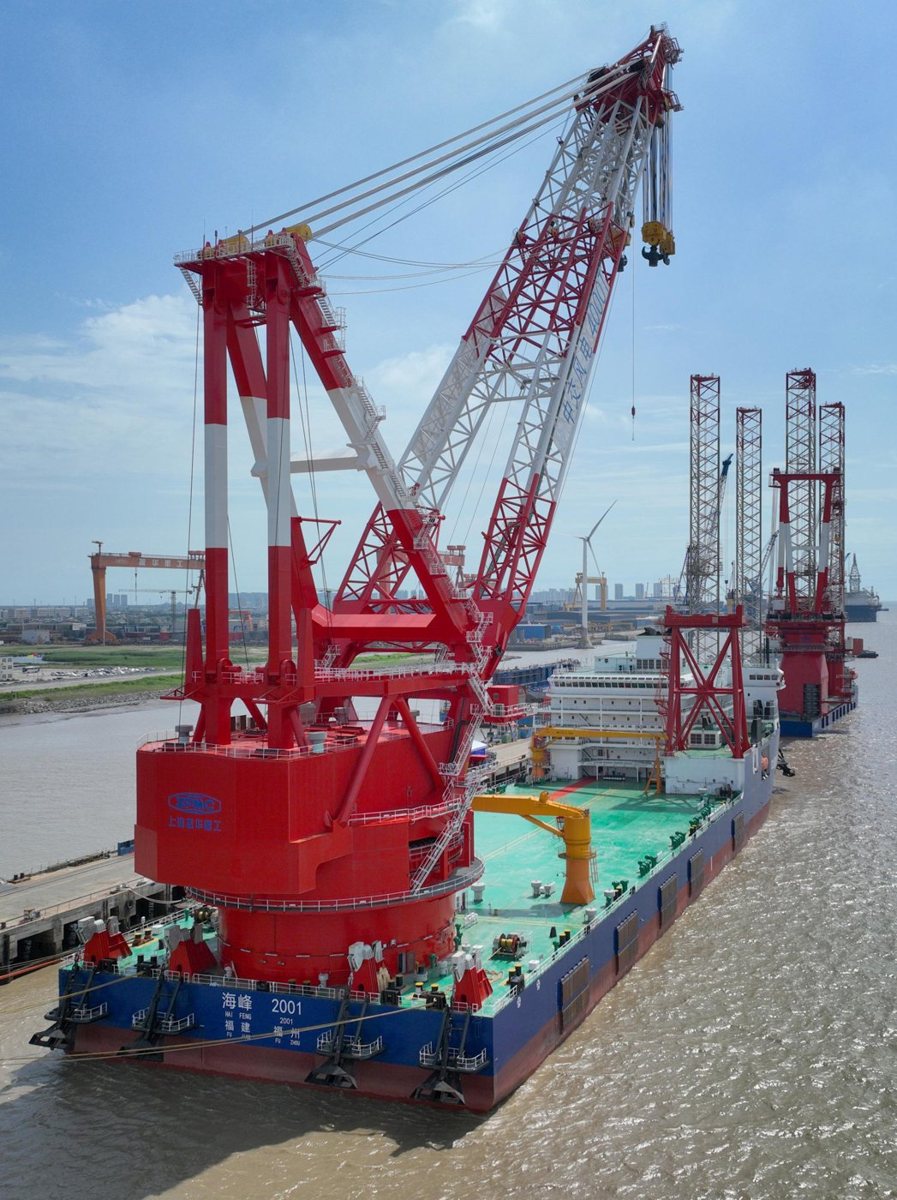

Marine & Offshore
Podded-propulsion, offshore crane and winch slip rings with power, fluid and signal in one assembly.

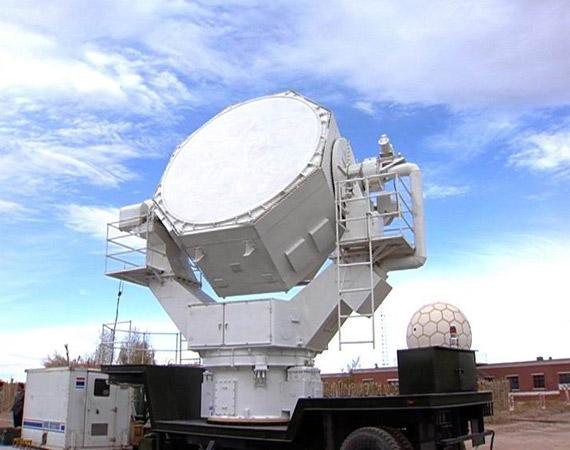

Radar & Antenna
Photo-electric-fluid slip rings plus one-, two- and three-axis antenna turntables.

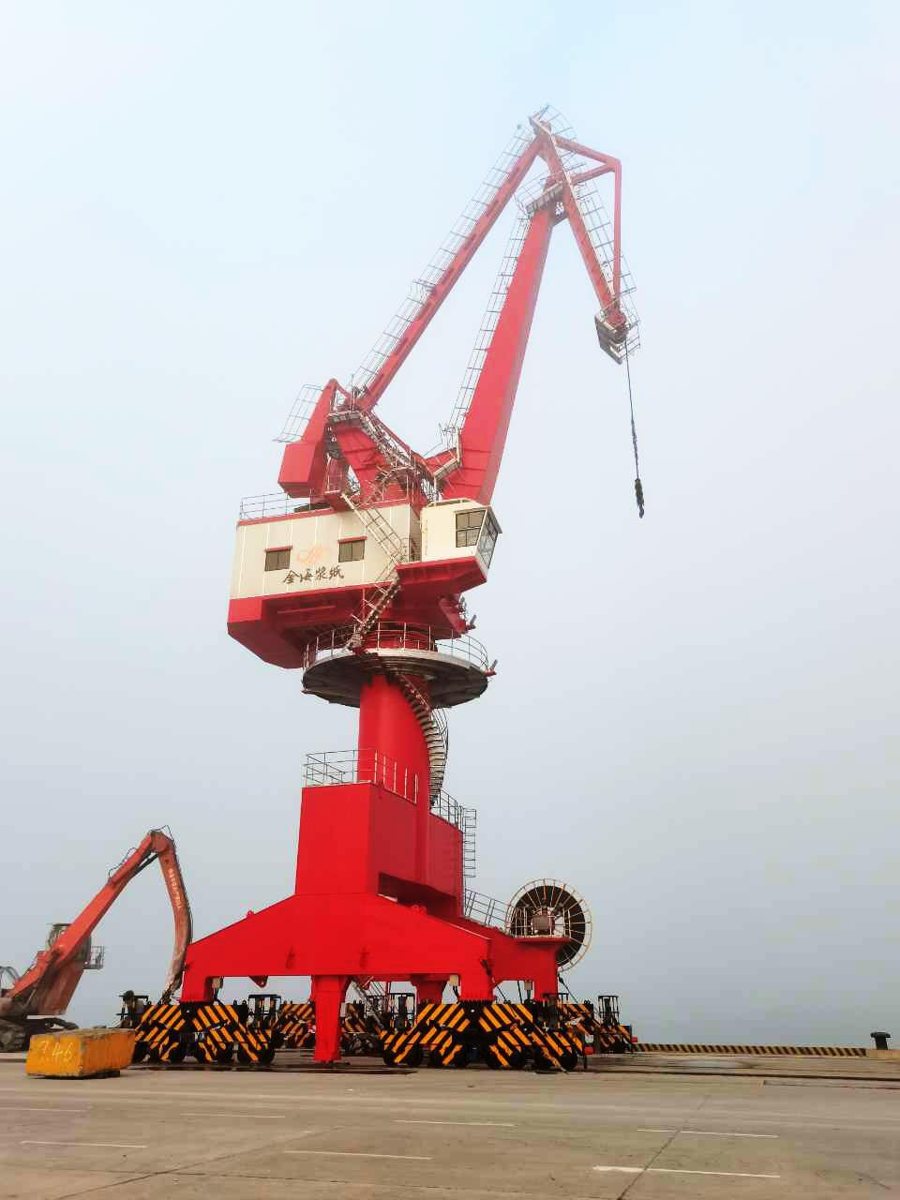

Ports & Cranes
Slip rings for portal cranes, rail-mounted gantries and cable reels.
Wind Energy
Pitch and yaw slip rings up to AC 1,140 V / 2,800 A with online temperature monitoring.
Subsea
Titanium slip rings rated for long-term service below 2,000 m.
Power Electronics
Cold plates and vapor chambers for IGBT modules, inverters and data-center racks.
Aerospace & Defense

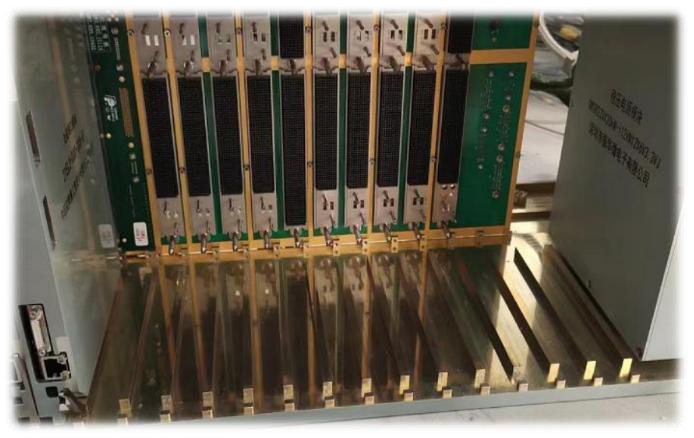

Liquid-cooled chassis, radar cooling and slip rings for aircraft pods.
Thermal management
Liquid cooling, from the plate to the pipeline.
Aluminum, copper, titanium or stainless construction. Vacuum brazing, friction stir welding, embedded copper tube and deep-hole drilling — chosen for your heat load and envelope.

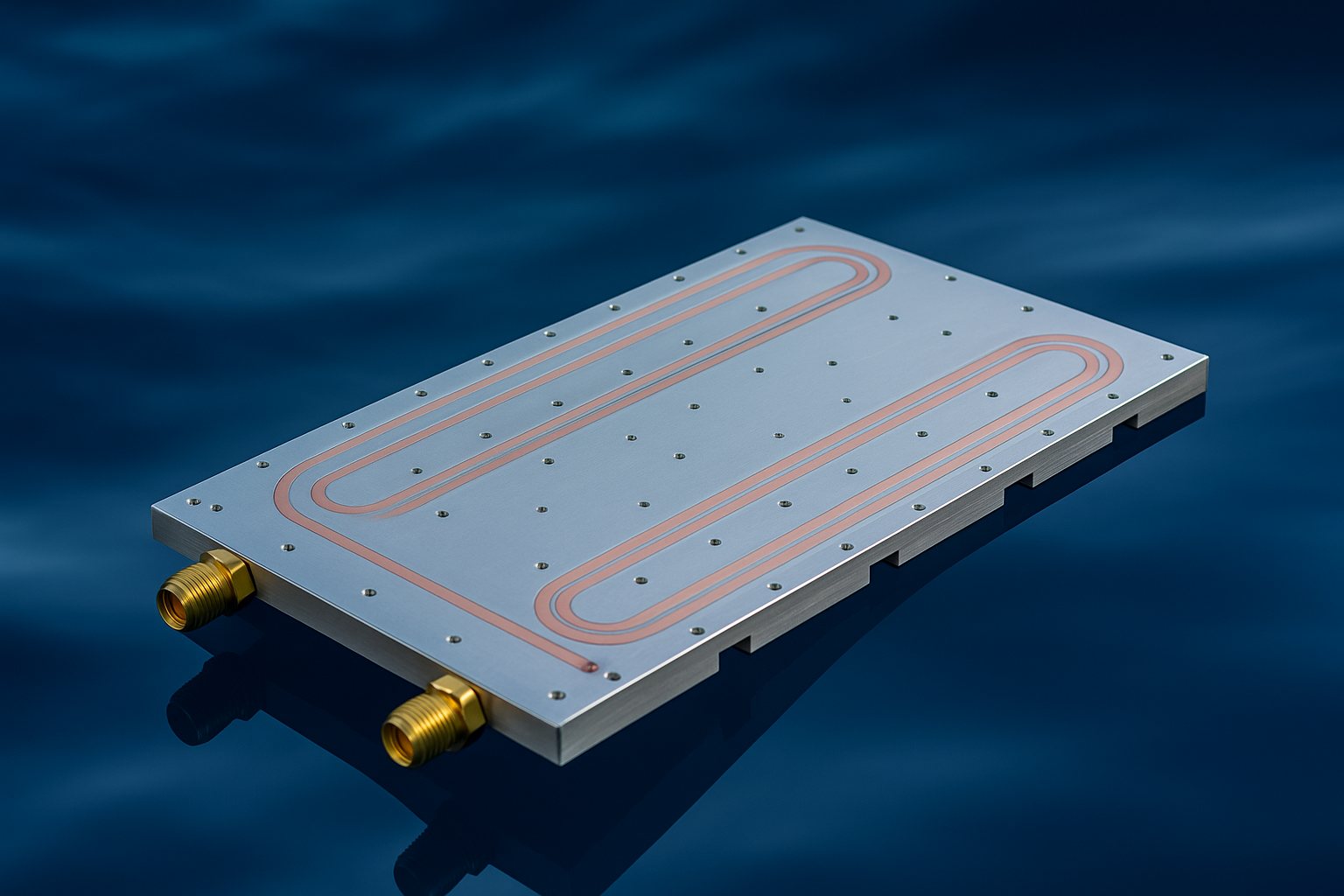

| C-HH-01 | Liquid Cold Plate |
| C-HH-02 | Liquid-Cooled Enclosure |

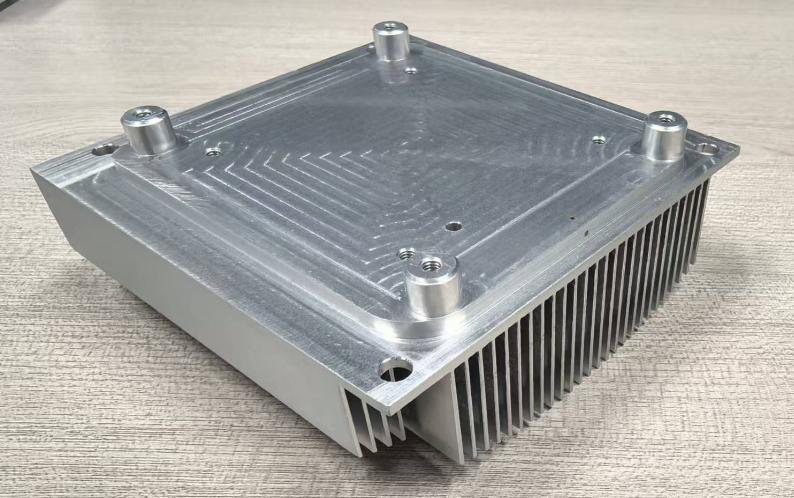

| C-HH-03 | Vapor Chamber / Isothermal Plate |
| C-HH-04 | Heat Exchanger |
| C-HH-05 | Fluid Connector |
| C-HH-06 | Liquid Cooling Pipeline |
−55 to +90 °C
Operating range
17 °C cooler
Vapor-chamber vs. standard sink · 3.96 kW

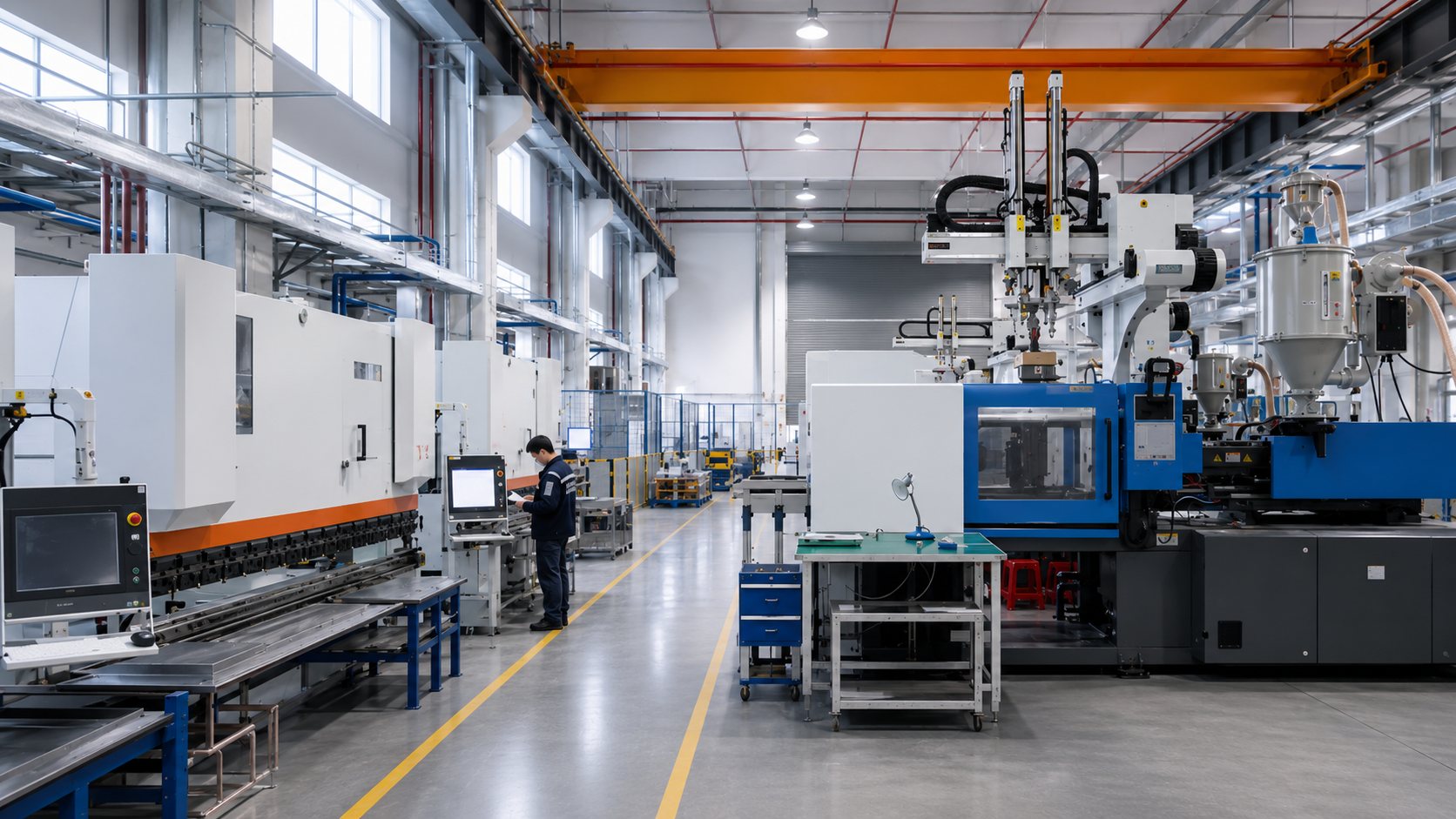

Custom manufacturing
One partner, from print to production.
Send a drawing or a STEP file. We review manufacturability, recommend the process and material, and deliver inspected parts — prototype quantities through production lots.
- CNC MachiningMilling and turning for metal and engineering-plastic parts, prototypes and fixtures.
- Assembly & IntegrationSub-assemblies, wiring and functional test before shipment.
- Sheet Metal & FabricationCutting, bending and welding for enclosures, brackets and panels.
- Surface FinishingAnodizing, plating, passivation and coatings matched to the environment.
- 3D Printing / AdditiveFast-turn prototypes and complex geometry for design validation.
How we work
From requirement to delivered hardware in four steps.
01
Send requirements
Share a spec sheet, drawing or STEP file — or just the operating conditions.
02
Engineering review
An engineer checks feasibility and recommends a series, process or material.
03
Prototype & test
First articles are built and verified against your requirements.
04
Production & delivery
Inspected parts ship in the quantities and schedule you need.
Have a spec sheet or a drawing? Send it to an engineer.
We reply with questions or a quote — not a sales script.
