Series L-HH-01-003
Communication Slip Ring
Slip rings optimized for digital and analog signal transmission with low noise and low crosstalk — field buses and Gigabit Ethernet through continuous rotation.
1000BASE-T
Gigabit Ethernet
≤ 5 A
Rated current
≤ 2,000 rpm
Rated speed
< 0.01 Ω
Contact resistance variation
Overview
Data integrity through the joint.
Supports a wide range of communication protocols for radar systems, robotics and precision instruments, keeping noise and crosstalk low while the axis turns.
Design advantages
- RS-232 / RS-422 / RS-485, CANbus, Profibus and 1000BASE-T Ethernet
- Gold-alloy contacts for low-level signals
- 2 to 200+ circuits, each rated ≤ 5 A
- Cable or connector leads; aluminum or stainless housing
Technical specifications
Standard ranges — built to your requirement.
Values marked customizable can be changed to suit your application; outline and mounting are made to order.
Electrical
| Circuits | 2–200+ (customizable) |
| Rated voltage | 0–240 VAC/VDC |
| Rated current | ≤ 5 A |
| Insulation resistance | ≥ 300 MΩ @ 1,000 VDC |
| Dielectric strength | 200 VAC @ 50 Hz, 60 s |
| Dynamic contact resistance | Variation < 0.01 Ω |
| Signal types | RS-232, RS-422, RS-485, CANbus, Profibus, 1000BASE-T |
Mechanical
| Service life | ≤ 50 million revolutions (customizable) |
| Rated speed | ≤ 2,000 rpm (customizable) |
| Operating temperature | −45 to +80 °C |
| Humidity | 0–97 % RH |
| Protection | IP51 (customizable) |
| Contact material | Gold alloy |
| Housing | Aluminum alloy or stainless steel |
| Leads | Cable or connector |
| Outline and mounting | Made to order |
Gallery
Communication Slip Ring in detail.

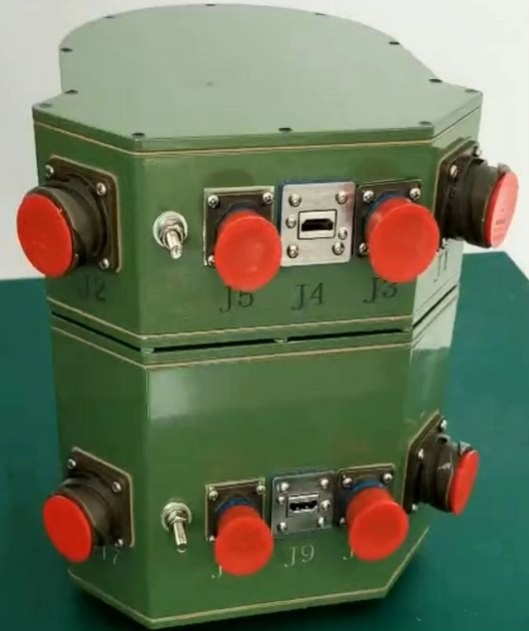

Rugged housing with circular connectors
Integrated with multi-channel fiber for radar vehicles and aircraft pods
Applications
Where it runs.
Radar systems
Processor and antenna data across the rotating joint.
Robotics
Field-bus and Ethernet to rotating axes and end effectors.
Precision instruments
Low-noise analog and digital signals in measurement systems.
Vehicle and airborne pods
Combined with fiber and power in integrated assemblies.
