Series L-HH-03-001
Fiber-Optic Rotary Joint
Fiber-optic rotary joints (FORJ) for continuous optical transmission across rotating interfaces — single- and multi-mode, 1 to 5+ cores.
850–1550 nm
Operating wavelength
≤ 2 dB
Insertion loss · 1-core single-mode
≤ 2,000 rpm
Rated speed · 1 core
1 to ≥ 5
Fiber cores
Overview
Bandwidth that ignores EMI.
Low-loss optical transmission for high-speed data, imaging and communication systems. Fiber channels can share one assembly with power, Ethernet and coolant.
Design advantages
- Single-mode and multi-mode options
- 1-core, 2–4-core and 5+-core designs
- Immune to electromagnetic interference
- FC and SC connectors (others to order)
- Stainless steel housing
Technical specifications
Standard ranges — built to your requirement.
Values marked customizable can be changed to suit your application; outline and mounting are made to order.
Technical specifications
| Cores | 1 · 2–4 · ≥ 5 |
| Operating wavelength | 850 nm, 1300 nm, 1310/1550 nm |
| Fiber type | Single-mode or multi-mode |
| Insertion loss | 1 core: SM ≤ 2 dB, MM ≤ 1 dB · 2–4 cores: SM ≤ 3 dB, MM ≤ 2 dB · ≥ 5 cores: SM ≤ 4 dB |
| Service life | ≤ 10 million revolutions (customizable) |
| Rated speed | 1 core ≤ 2,000 rpm · 2+ cores ≤ 100 rpm (customizable) |
| Operating temperature | −40 to +80 °C |
| Housing | Stainless steel (customizable) |
| Connectors | FC, SC (customizable) |
| Outline and mounting | Made to order |
Gallery
Fiber-Optic Rotary Joint in detail.

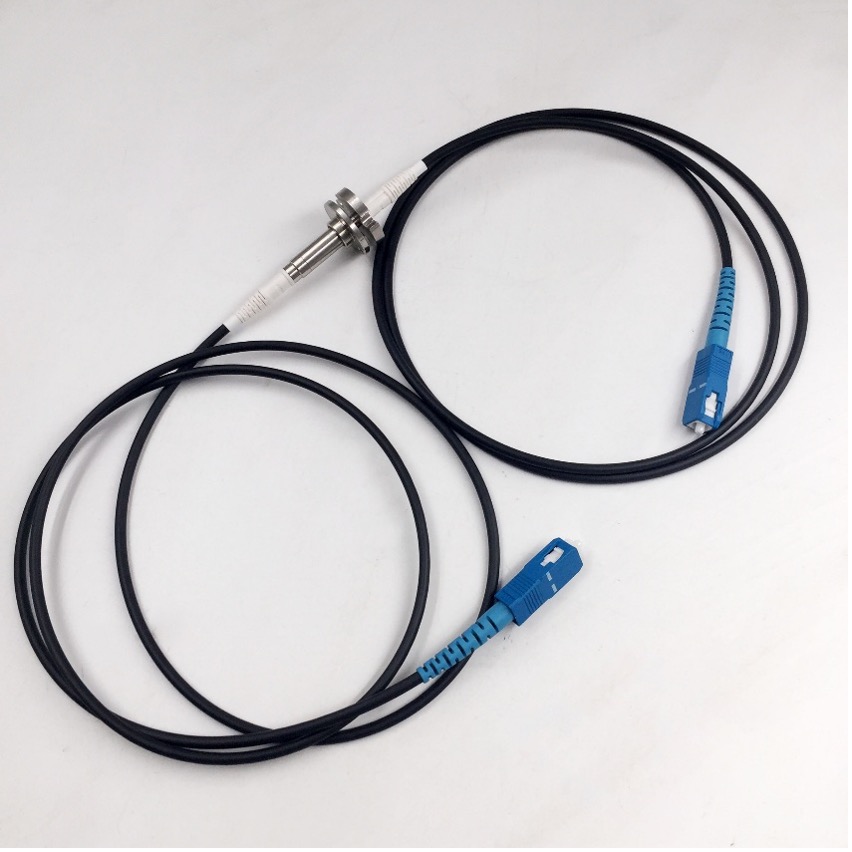

Flange-mount joint with fiber pigtails
Integrated builds
Fiber combined with power and fluid.
Photo-electric
Fiber-optic and electrical slip ring
0–120 rpm · power, control, Gigabit Ethernet and video plus multi-channel fiber · radar vehicles and aircraft pods.
Photo-electric-fluid
Fiber, power and coolant in one joint
0–200 rpm · two liquid loops, 4.5 m³/h at 1.6 MPa, DN25 · multi-channel fiber · radar vehicles, special vehicles and turntables.
Applications
Where it runs.
High-speed data links
Uncompressed sensor and video data across the joint.
Imaging systems
Cameras and optical sensors on rotating mounts.
Radar vehicles and aircraft pods
Fiber combined with power in integrated assemblies.
Communication systems
Optical links in rotating antennas.
Specify your fiber-optic rotary joint.
Send the operating conditions and envelope. An engineer will recommend a configuration or quote a custom build.
