L-HH-01-001

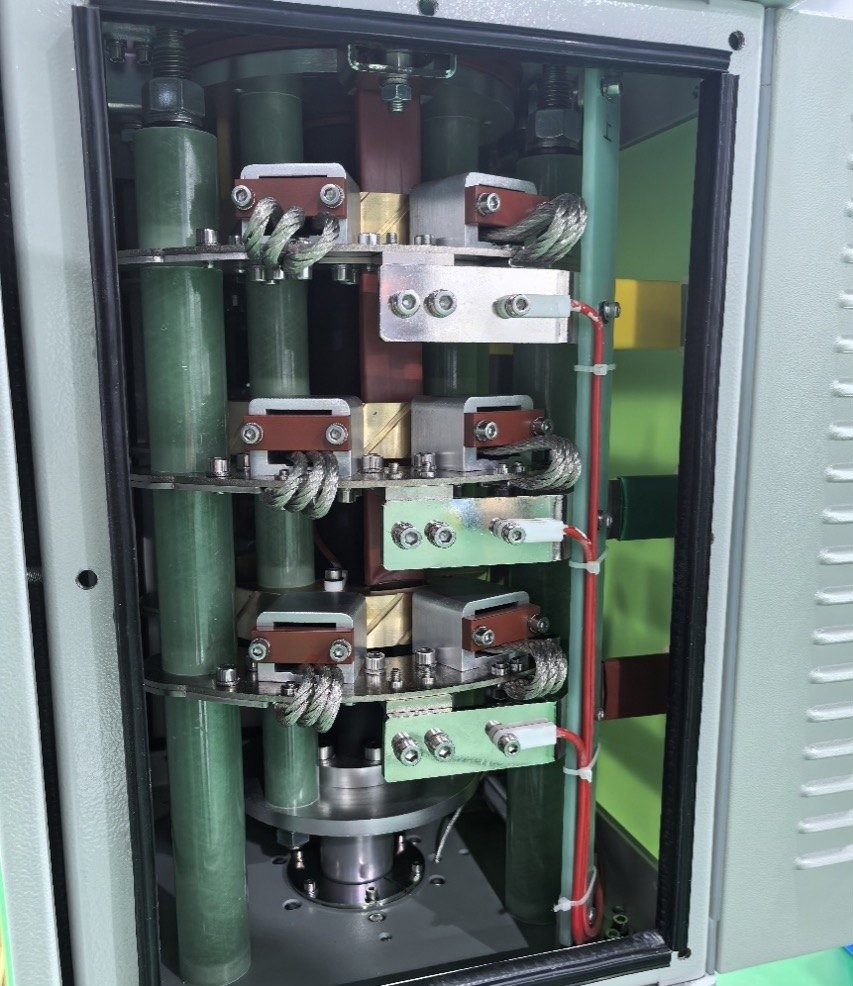

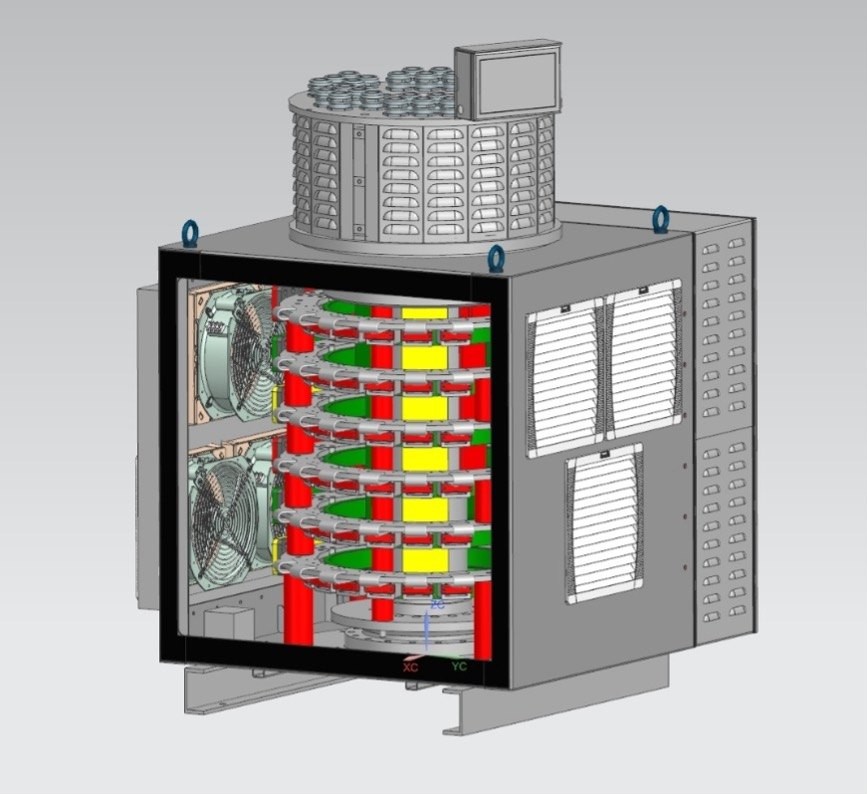

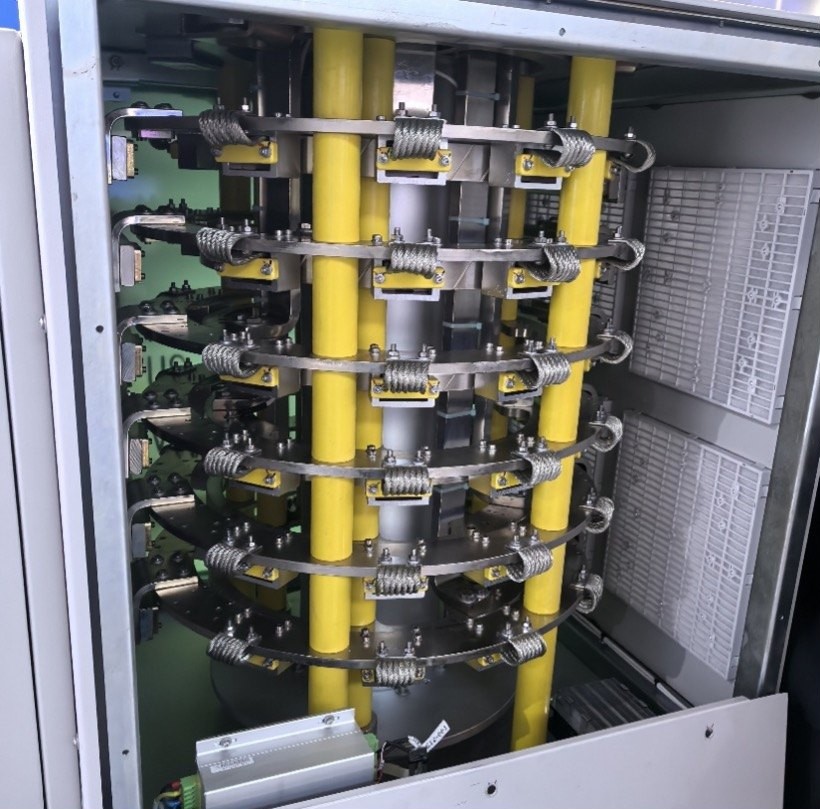

Power Slip Ring
The L-HH-01-002 series is a heavy-duty power slip ring designed for high-voltage, high-current rotary transmission.
It provides stable electrical continuity for demanding industrial and energy systems.
Slip Ring
Enjoy the best design & function combined together
They are ideal for use in test rigs, automation systems, and production equipment requiring stable and reliable transmission of electrical signals during continuous rotation.
Electrical Specifications
| Parameter | Value |
|---|---|
| Number of Circuits | 3, 4, 6, 12 (customizable) |
| Rated Voltage | 0–10 kVAC/VDC |
| Rated Current | ≤ 5000 A |
| Insulation Resistance | ≥ 300 MΩ @ 1000 VDC |
| Rated Dielectric Voltage | 1000 VAC |
| Single-Channel Contact Resistance | < 0.1 mΩ |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Service Life | ≤ 20 million revolutions (customizable) |
| Rated Speed | ≤ 6000 rpm (customizable) |
| Operating Temperature | −45 °C ~ +80 °C |
| Operating Humidity | 0 – 97 % RH |
| Protection Grade | IP51 / IP54 (customizable) |
| Corrosion Protection | C3-H |
| Contact Material | Silver alloy / Carbon alloy |
| Housing Material | Aluminum alloy / Stainless steel |
| Lead Connection | Cable / Copper bar |
