Series C-HH-06
Liquid Cooling Pipeline

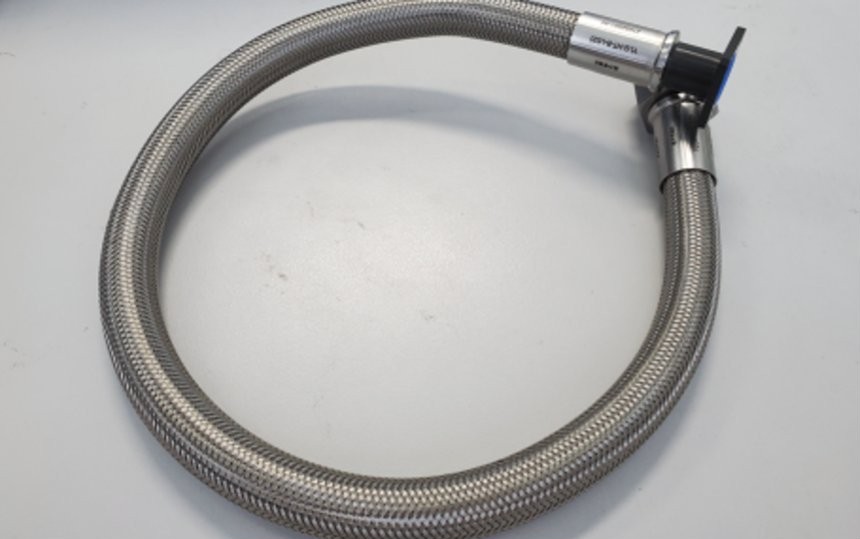

Flexible PTFE hose with stainless braid for coolant, air, lubricant or fuel — used across electronics, rail, marine, aircraft, spacecraft and rockets.
0–35 MPa
Working pressure
−70 to +260 °C
Operating temperature
DN8–DN25
Size series
PTFE + SS braid
Hose construction
Overview
Routing for every loop.
Flange, quick-connect or self-sealing ends match the rest of the loop — cold plates, connectors and pump stations.
Design advantages
- Reinforced PTFE with stainless steel braid for flexibility and pressure resistance
- Excellent corrosion and temperature tolerance
- Modular fittings for easy integration into cooling systems
Technical specifications
Standard ranges — built to your requirement.
Values marked customizable can be changed to suit your application; outline and mounting are made to order.
Technical specifications
| Operating temperature | −70 to +260 °C |
| Working pressure | 0–35 MPa |
| Media | Deionized water, seawater, coolant, oil, gas |
| Material | PTFE hose with stainless steel wire braid |
| End fittings | Flange, quick connector or self-sealing connector |
| Size series | DN8, 10, 15, 20, 25 (customizable) |
Gallery
Liquid Cooling Pipeline in detail.

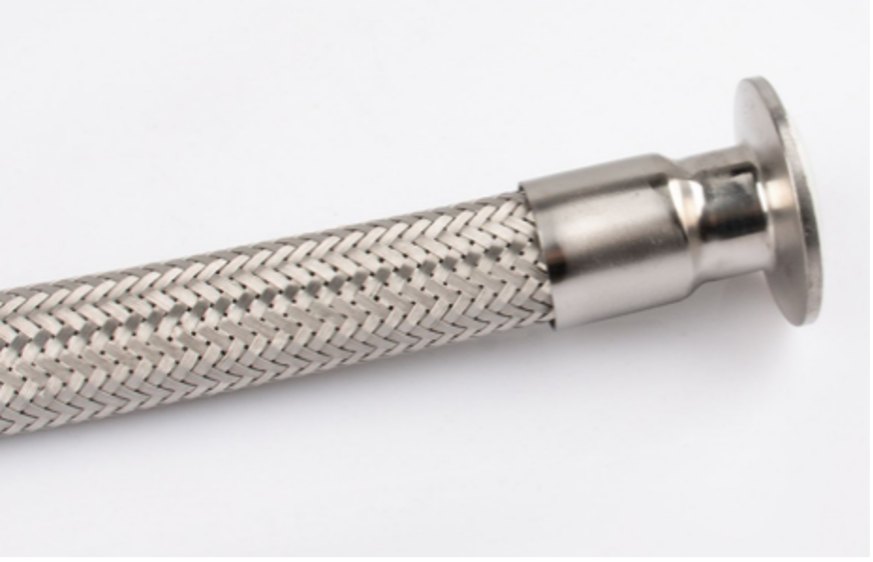

Braided hose with flange fitting
Applications
Where it runs.
Avionics and radar cooling loops
Flexible runs between cold plates and pumps.
Electric vehicle battery systems
Coolant routing to battery packs.
Industrial liquid transfer
Hydraulic and process fluid lines.
Rail, marine and aerospace
Fluid lines rated −70 to +260 °C.
Specify your liquid cooling pipeline.
Send the operating conditions and envelope. An engineer will recommend a configuration or quote a custom build.
