Series C-HH-05
Fluid Connector
Blind-mate, push-pull and bayonet connectors for liquid-cooled chassis, cabinets and cold plates — self-sealing when disconnected, leak-free when mated.
0–2 MPa
Working pressure
1,000
Pressurized mate/unmate cycles
240 h
Salt spray
DN3–DN10
Nominal sizes
Overview
Plug in, pull out — no drips.
Suited to assemblies that need precise alignment or see vibration. The housing resists wear and corrosion across a wide range of environments.
Design advantages
- Self-sealing design prevents fluid loss during disconnection
- Smooth internal flow path minimizes turbulence and pressure drop
- Compact, modular design for easy assembly and maintenance
Technical specifications
Standard ranges — built to your requirement.
Values marked customizable can be changed to suit your application; outline and mounting are made to order.
Technical specifications
| Operating temperature | −55 to +95 °C |
| Working pressure | 0–2 MPa |
| Media | Water, coolant, oil and others |
| Housing | Aluminum alloy, stainless steel or titanium alloy |
| Seals | High-strength fluorosilicone or EPDM rubber |
| Mechanical life | 1,000 pressurized mate/unmate cycles |
| Salt spray | 240 h |
| Nominal size | DN3, 5, 6, 7, 8, 10 (customizable) |
Gallery
Fluid Connector in detail.

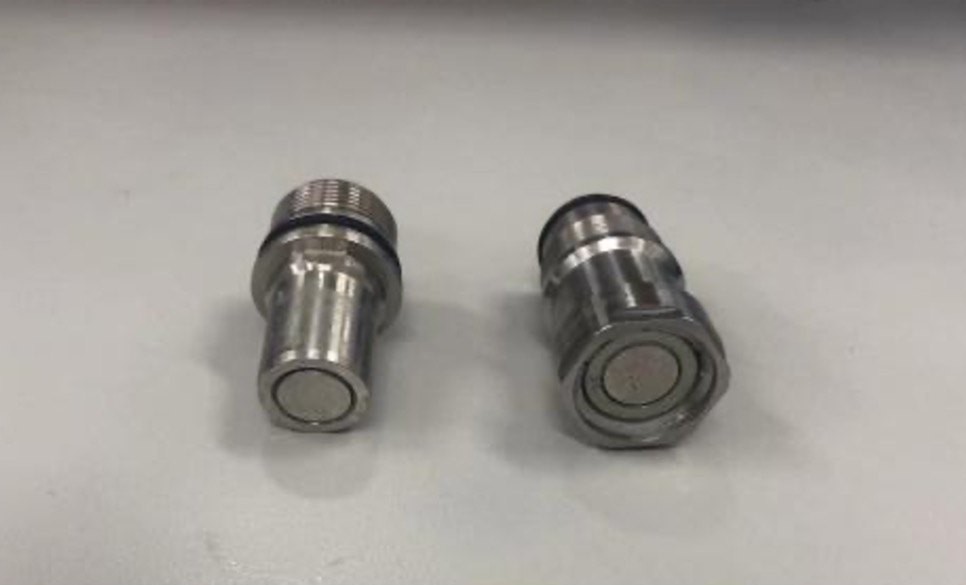

Mating faces of a connector pair

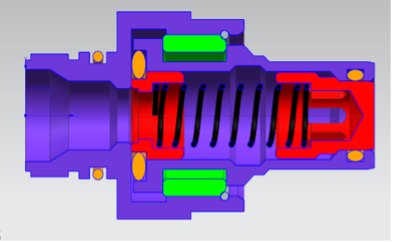

Cross-section: internal valve and flow path
Cross-section: spring-loaded seal
Reference build
Floating blind-mate connector
No locking mechanism to operate, bidirectional self-sealing, high working pressure with low flow resistance, and radial float to absorb rack misalignment.
| Max working pressure | 1.6 MPa |
| Burst pressure | ≥ 2.5 MPa |
| Operating temperature | −40 to +70 °C |
| Mechanical life | 1,500 cycles |
| Material | 316L stainless steel |
Applications
Where it runs.
Liquid-cooled racks and test systems
Hot-swappable cooled modules.
Power and communication modules
Blind-mate cooling in cabinets.
Aerospace and naval cooling networks
Sealed connections under vibration.
Industrial hydraulic systems
Quick, clean disconnects.
Specify your fluid connector.
Send the operating conditions and envelope. An engineer will recommend a configuration or quote a custom build.
